VS3622DE - 30V/35A Dual N-Channel Advanced Power MOSFET

Product Overview

Vanguard Semiconductor

📥 Download Datasheet

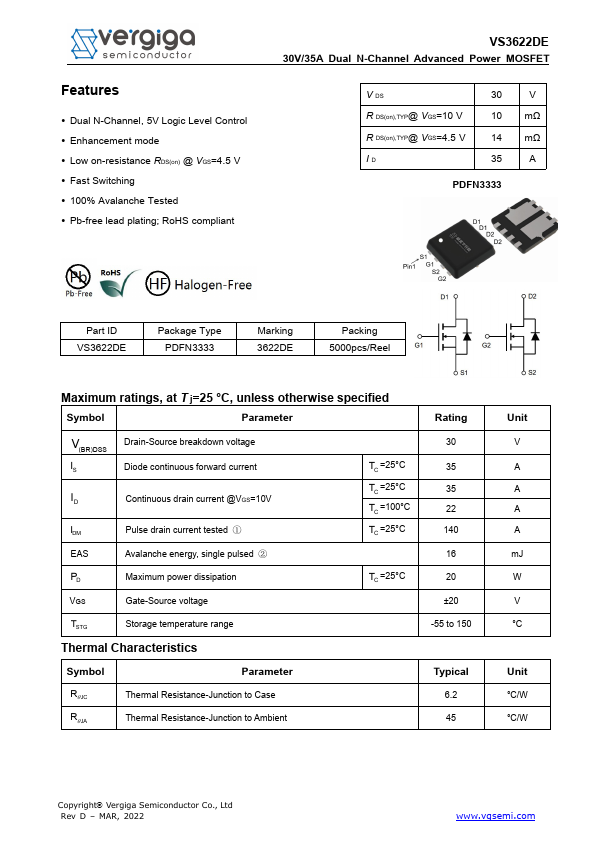

VS3622DE 30V/35A Dual N-Channel Advanced Power MOSFET by Vanguard Semiconductor - Datasheet Preview — Datasheet preview – VS3622DE

Datasheet Details

Part number	VS3622DE
Manufacturer	Vanguard Semiconductor
File Size	1.01 MB
Description	30V/35A Dual N-Channel Advanced Power MOSFET
Datasheet	VS3622DE Datasheet

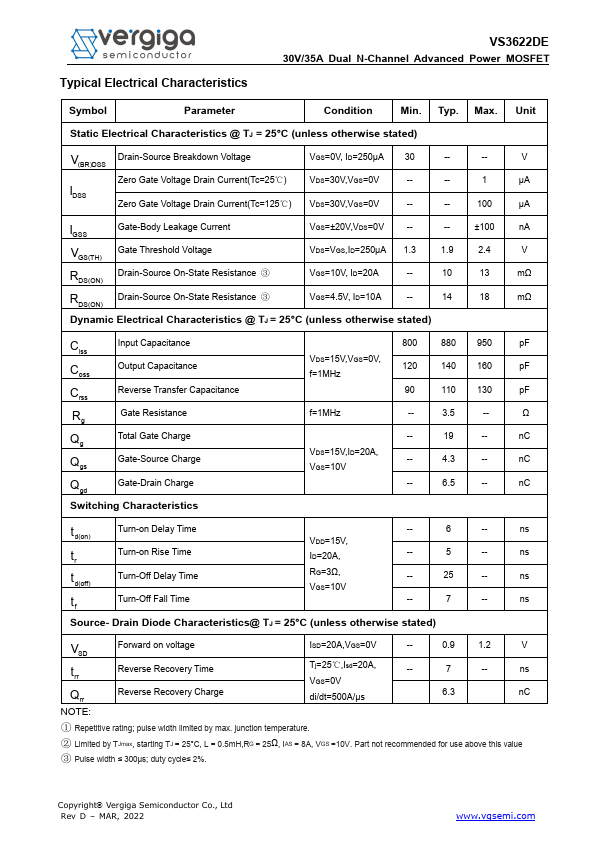

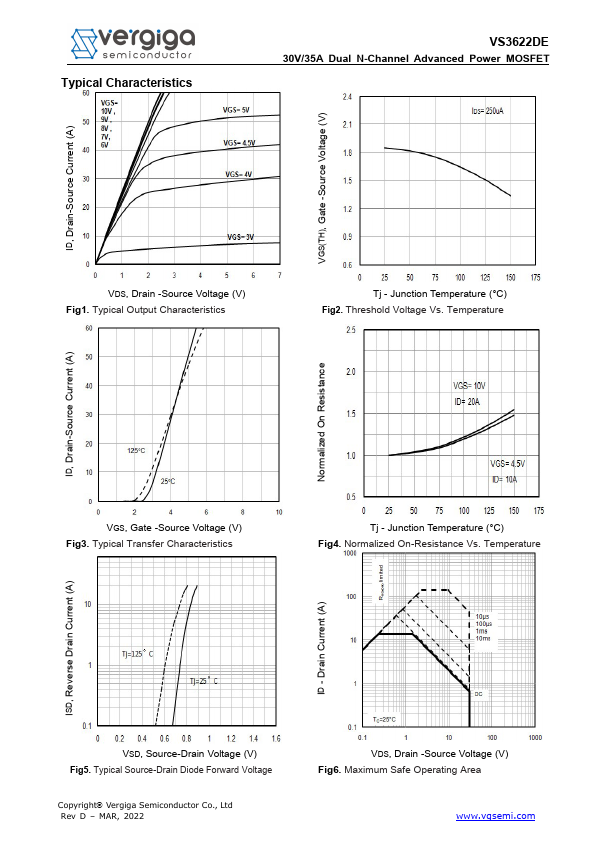

Additional preview pages of the VS3622DE datasheet.

Product details

Features

Dual N-Channel, 5V Logic Level Control.
Enhancement mode.
Low on-resistance RDS(on) @ VGS=4.5 V.
Fast Switching.
100% Avalanche Tested.
Pb-free lead plating; RoHS compliant.
VS3622DE 30V/35A Dual N-Channel Advanced Power MOSFET V DS R @ DS(on),TYP VGS=10 V R @ DS(on),TYP VGS=4.5 V ID 30 V 10 mΩ 14 mΩ 35 A PDFN3333 Part ID VS3622DE Package Type PDFN3333 Marking 3622DE Packing 5000pcs/Reel Maximum ratings, at T j=25 °C, unless otherwise specified.
