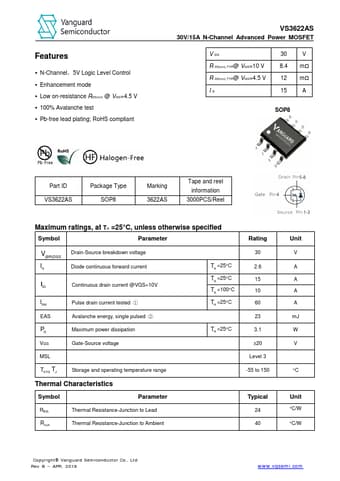

VS3622AS
Features
- N-Channel，5V Logic Level Control
- Enhancement mode
- Low on-resistance RDS(on) @ VGS=4.5 V
- 100% Avalanche test
- Pb-free lead plating; Ro HS pliant
30V/15A N-Channel Advanced Power MOSFET
V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID
30 V 8.4 mΩ 12 mΩ 15 A
SOP8
Part ID VS3622AS
Package Type SOP8
Marking 3622AS
Tape and reel information
3000PCS/Reel
Maximum ratings, at TA =25°C, unless otherwise specified
Symbol
Parameter
V(BR)DSS
Drain-Source breakdown voltage Diode continuous forward current
ID Continuous drain current @VGS=10V
IDM EAS PD VGS
Pulse drain current tested ① Avalanche energy, single pulsed ② Maximum power dissipation Gate-Source voltage
TA =25°C TA =25°C TA =100°C TA =25°C
TA =25°C
TSTG TJ
Storage and operating temperature range
Thermal Characteristics
Symbol
Parameter
RθJL Rθ JA
Thermal Resistance-Junction to Lead Thermal Resistance-Junction to Ambient
Rating
30 2.6 15 10 60...
