VS40280AT N-Channel Advanced Power MOSFET

VS40280AT Description

VS40280AT 40V/280A N-Channel Advanced Power MOSFET .
VS40280AT designed by the trench processing techniques to achieve extremely low on-resistance.

VS40280AT Features

* Low On-Resistance
* Fast Switching
* 100% Avalanche Tested
* Repetitive Avalanche Allowed up to Tjmax

VS40280AT Applications

* and a wide variety of other applications. Absolute Maximum Ratings Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only;and functional operation of the device at these or any other condition beyond those indicated in th

📥 Download Datasheet

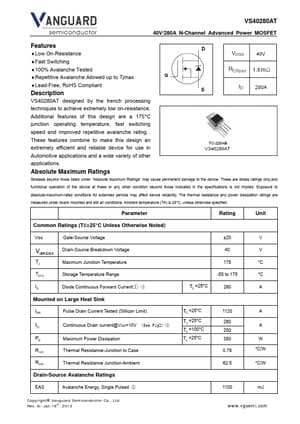

Preview of VS40280AT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS40280AT
Manufacturer
Vanguard Semiconductor
File Size
248.71 KB
Datasheet
VS40280AT-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
