VS4606AS - N+P-Channel Advanced Power MOSFET

Vanguard Semiconductor

The VS4606AS by Vanguard Semiconductor is a N+P-Channel Advanced Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

VS4606AS N+P-Channel Advanced Power MOSFET by Vanguard Semiconductor - Datasheet Preview — Official preview page of the **VS4606AS** N+P-Channel Advanced Power MOSFET datasheet (Vanguard Semiconductor).

Datasheet Details

Part number	VS4606AS
Manufacturer	Vanguard Semiconductor
File Size	304.68 KB
Description	N+P-Channel Advanced Power MOSFET
Datasheet	VS4606AS-VanguardSemiconductor.pdf

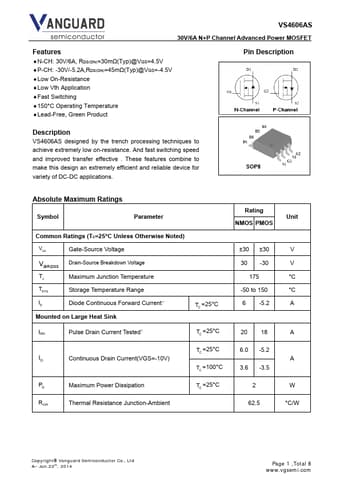

Additional preview pages of the VS4606AS datasheet.

VS4606AS Product details

Description

Description VS4606AS designed by the trench processing techniques to achieve extremely low on-resistance.And fast switching speed and improved transfer effective .These

Features

N-CH: 30V/6A, RDS(ON)=30mΩ(Typ)@VGS=4.5V.
P-CH: -30V/-5.2A,RDS(ON)=45mΩ(Typ)@VGS=-4.5V.
Low On-Resistance.
Low Vth.
