VSD007N06MS

N-Channel Advanced Power MOSFET

VSD007N06MS Features

* N-Channel

* Enhancement mode

* Very low on-resistance RDS(on) @ VGS=4.5 V

* Fast Switching

* 100% Avalanche test

* Pb-free lead plating; RoHS compliant VSD007N06MS 60V/85A N-Channel Advanced Power MOSFET V DS 60 V R @DS(on),TYP VGS=10 V 5.0 mΩ R @DS(on),TYP VGS=4.5V

VSD007N06MS Datasheet (354.44 KB)

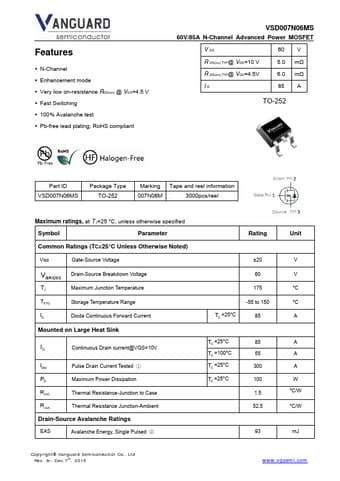

Preview of VSD007N06MS PDF

Datasheet Details

Part number:

VSD007N06MS

Manufacturer:

Vanguard Semiconductor

File Size:

354.44 KB

Description:

N-channel advanced power mosfet.
