VSD004N03MS

N-Channel Advanced Power MOSFET

VSD004N03MS Features

* N-Channel

* Enhancement mode

* Very low on-resistance RDS(on) @ VGS=4.5 V

* Fast Switching

* 100% Avalanche Tested

* Pb-free lead plating; RoHS compliant VSD004N03MS 30V/150A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5V ID 30 V 2.2 m

VSD004N03MS Datasheet (287.88 KB)

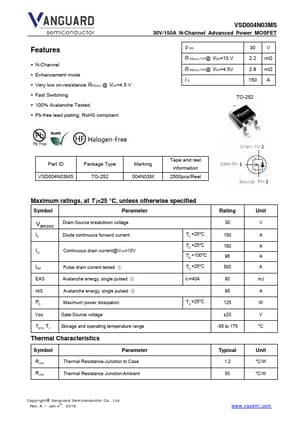

Preview of VSD004N03MS PDF

Datasheet Details

Part number:

VSD004N03MS

Manufacturer:

Vanguard Semiconductor

File Size:

287.88 KB

Description:

N-channel advanced power mosfet.
