VSD006P03MS

P-Channel Advanced Power MOSFET

VSD006P03MS Features

* P-Channel，-5V Logic Level Control

* Very low on-resistance RDS(on) @ VGS=-4.5 V

* Fast Switching

* Enhancement mode

* 100% Avalanche Tested

* Pb-free lead plating; RoHS compliant VSD006P03MS -30V/-70A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),

VSD006P03MS Datasheet (315.95 KB)

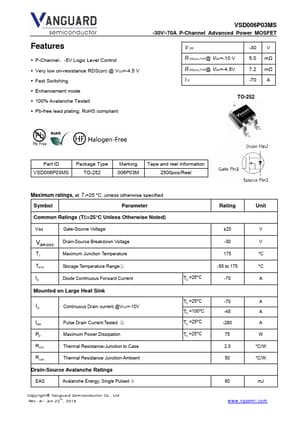

Preview of VSD006P03MS PDF

Datasheet Details

Part number:

VSD006P03MS

Manufacturer:

Vanguard Semiconductor

File Size:

315.95 KB

Description:

P-channel advanced power mosfet.
