VSD005N03MS Datasheet - Vanguard Semiconductor

VSD005N03MS N-Channel Advanced Power MOSFET

VSD005N03MS Features

* N-Channel，5V Logic Level Control

* Enhancement mode

* Very low on-resistance RDS(on) @ VGS=4.5 V

* 100% Avalanche test

* Pb-free lead plating; RoHS compliant VSD005N03MS 30V/105A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 30 V 3 mΩ

VSD005N03MS-VanguardSemiconductor.pdf

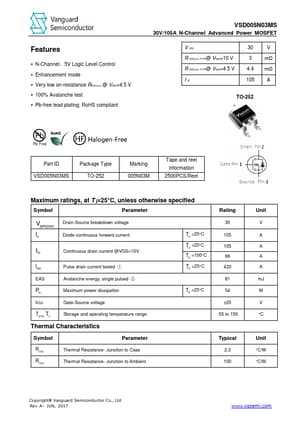

Preview of VSD005N03MS PDF
VSD005N03MS Datasheet Preview Page 2 VSD005N03MS Datasheet Preview Page 3

Datasheet Details

Part number:

VSD005N03MS

Manufacturer:

Vanguard Semiconductor

File Size:

442.83 KB

Description:

N-channel advanced power mosfet.
