VSD006N08MS Datasheet - Vanguard Semiconductor

VSD006N08MS N-Channel Advanced Power MOSFET

VSD006N08MS Features

* N-Channel，5V Logic Level Control

* Enhancement mode

* Very low on-resistance RDS(on) @ VGS=4.5 V

* 100% Avalanche test

* Pb-free lead plating; RoHS compliant VSD006N08MS 80V/85A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 80 V 5.8 m

VSD006N08MS-VanguardSemiconductor.pdf

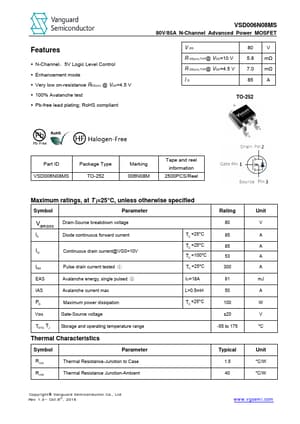

Preview of VSD006N08MS PDF
VSD006N08MS Datasheet Preview Page 2 VSD006N08MS Datasheet Preview Page 3

Datasheet Details

Part number:

VSD006N08MS

Manufacturer:

Vanguard Semiconductor

File Size:

329.69 KB

Description:

N-channel advanced power mosfet.
