VSE025C03MC N+P-Channel Advanced Power MOSFET

Vanguard Semiconductor

VSE025C03MC Description

VSE025C03MC Features

* N+P Channel
* Enhancement mode
* Low on-resistance RDS(on) @ VGS=±4.5 V
* Fast Switching and High efficiency
* Pb-free lead plating; RoHS compliant VSE025C03MC 30V N+P Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=±10 V R @DS(on),TYP VGS=±4.5V ID 30 -30 V 15 24 mΩ 23

📥 Download Datasheet

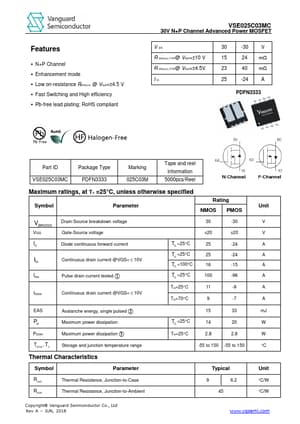

VSE025C03MC Datasheet Preview — Preview of VSE025C03MC PDF

Datasheet Details

Part number: VSE025C03MC
Manufacturer: Vanguard Semiconductor
File Size: 905.27 KB
Datasheet: VSE025C03MC-VanguardSemiconductor.pdf
Description: N+P-Channel Advanced Power MOSFET
