VSO013N04MS - N-Channel Advanced Power MOSFET

Name: VSO013N04MS
SKU: VSO013N04MS-1282004

Vanguard Semiconductor

The VSO013N04MS by Vanguard Semiconductor is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VSO013N04MS
Manufacturer	Vanguard Semiconductor
File Size	601.10 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VSO013N04MS-VanguardSemiconductor.pdf

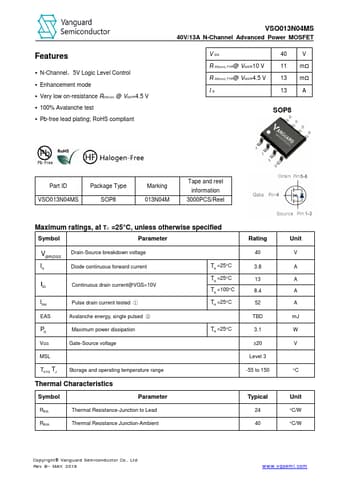

Additional preview pages of the VSO013N04MS datasheet.

N-Channel，5V Logic Level Control.
Enhancement mode.
Very low on-resistance RDS(on) @ VGS=4.5 V.
100% Avalanche test.
Pb-free lead plating; RoHS compliant VSO013N04MS 40V/13A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 40 V 11 mΩ 13 mΩ 13 A SOP8 Part ID VSO013N04MS Package Type SOP8 Marking 013N04M Tape and reel information 3000PCS/Reel Maximum ratings, at TC =25°C, unless otherwise specified Symbol Parameter V(BR)DS.
