VSOP584xx - Preamplifier Circuit

Description

The VSOP584..

is designed for use in an IR receiver application together with a photo pin diode.

It is a sophisticated receiver concept that is very sensitive to data signals and compatible with the most common data formats for IR remote control.

Features

  • Narrow bandpassfilter for all common carrier frequencies.
  • High immunity against DC light.
  • Intelligent AGC to suppress disturbance from fluorescent lamps and CRTs.
  • Low power consumption.
  • Wide supply voltage range.
  • High immunity against ripple on the supply voltage.
  • Output active low 22529.
  • IC manufactured in CMOS technology.
  • Small QFN package with 2 mm width.
  • Compliant to RoHS Directive 2002/95/EC Note.

📥 Download Datasheet

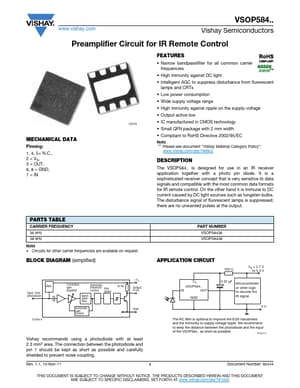

Datasheet preview – VSOP584xx
