VSOP38338

Preamplifier

Vishay

VSOP38338 Features

* Narrow bandpassfilter for all common carrier frequencies

* High immunity against DC light

* Intelligent AGC to suppress disturbance from fluorescent lamps and CRTs

* Low power consumption

* Wide supply voltage range

* High immunity against ripple on

VSOP38338 General Description

The VSOP383.. is designed for use in an IR receiver application together with a photo pin diode. It is a sophisticated receiver concept that is very sensitive to data signals and compatible with the most common data formats for IR remote control. On the other hand it is immune to DC current caused b.

VSOP38338 Datasheet (248.84 KB)

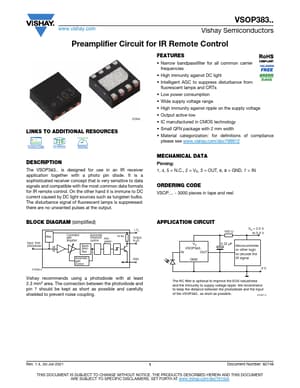

VSOP38338 Datasheet Preview — Preview of VSOP38338 PDF

Datasheet Details

Part number:

VSOP38338

Manufacturer:

Vishay ↗

File Size:

248.84 KB

Description:

Preamplifier.
www.vishay.com VSOP383.. Vishay Semiconductors Preamplifier Circuit for IR Remote Control LINKS TO ADDITIONAL RESOURCES Product Page 3D 3D 3D Mod.
