VSP005N03MS - N-Channel Advanced Power MOSFET

Name: VSP005N03MS
SKU: VSP005N03MS-1282020

Vanguard Semiconductor

The VSP005N03MS by Vanguard Semiconductor is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VSP005N03MS
Manufacturer	Vanguard Semiconductor
File Size	353.97 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VSP005N03MS-VanguardSemiconductor.pdf

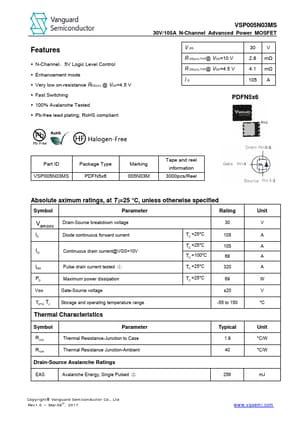

Additional preview pages of the VSP005N03MS datasheet.

N-Channel，5V Logic Level Control.
Enhancement mode.
Very low on-resistance RDS(on) @ VGS=4.5 V.
Fast Switching.
100% Avalanche Tested.
Pb-free lead plating; RoHS compliant VSP005N03MS 30V/105A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 30 V 2.8 mΩ 4.1 mΩ 105 A PDFN5x6 Part ID VSP005N03MS Package Type PDFN5x6 Marking 005N03M Tape and reel information 3000pcs/Reel Absolute aximum ratings, at T j=25 °C, unless other.
