VSP005N06MS - N-Channel Advanced Power MOSFET

Name: VSP005N06MS
SKU: VSP005N06MS-1282038

Vanguard Semiconductor

The VSP005N06MS by Vanguard Semiconductor is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VSP005N06MS
Manufacturer	Vanguard Semiconductor
File Size	368.17 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VSP005N06MS-VanguardSemiconductor.pdf

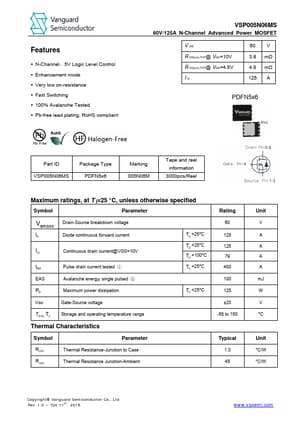

Additional preview pages of the VSP005N06MS datasheet.

N-Channel，5V Logic Level Control.
Enhancement mode.
Very low on-resistance.
Fast Switching.
100% Avalanche Tested.
Pb-free lead plating; RoHS compliant VSP005N06MS 60V/125A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10V R @DS(on),TYP VGS=4.5V ID 60 V 3.8 mΩ 4.9 mΩ 125 A PDFN5x6 Part ID VSP005N06MS Package Type PDFN5x6 Marking 005N06M Tape and reel information 3000pcs/Reel Maximum ratings, at T j=25 °C, unless otherwise specified Symbol Parame.
