VSP006N04MS - N-Channel Advanced Power MOSFET

Name: VSP006N04MS
SKU: VSP006N04MS-1282027

Vanguard Semiconductor

The VSP006N04MS by Vanguard Semiconductor is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VSP006N04MS
Manufacturer	Vanguard Semiconductor
File Size	341.06 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VSP006N04MS-VanguardSemiconductor.pdf

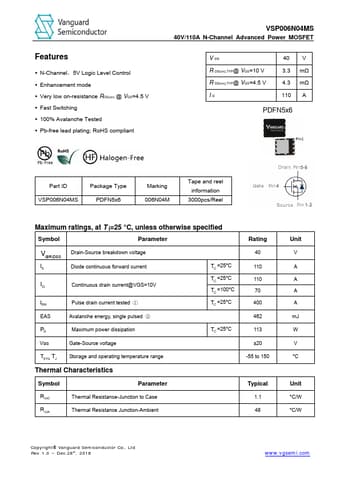

Additional preview pages of the VSP006N04MS datasheet.

N-Channel，5V Logic Level Control.
Enhancement mode.
Very low on-resistance RDS(on) @ VGS=4.5 V.
Fast Switching.
100% Avalanche Tested.
Pb-free lead plating; RoHS compliant VSP006N04MS 40V/110A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 40 V 3.3 mΩ 4.3 mΩ 110 A PDFN5x6 Part ID VSP006N04MS Package Type PDFN5x6 Marking 006N04M Tape and reel information 3000pcs/Reel Maximum ratings, at T j=25 °C, unless otherwise spe.
