VSP006N05MS - N-Channel Advanced Power MOSFET

Name: VSP006N05MS
SKU: VSP006N05MS-1282070

Vanguard Semiconductor

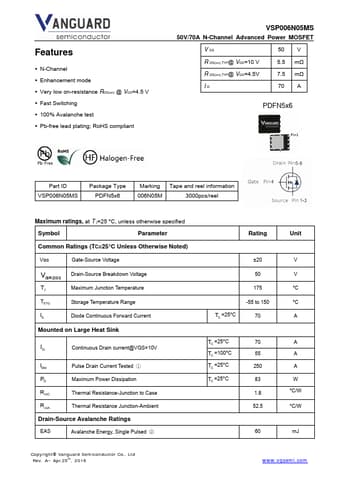

The VSP006N05MS by Vanguard Semiconductor is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VSP006N05MS
Manufacturer	Vanguard Semiconductor
File Size	320.64 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VSP006N05MS-VanguardSemiconductor.pdf
Additional preview pages of the VSP006N05MS datasheet.

N-Channel.
Enhancement mode.
Very low on-resistance RDS(on) @ VGS=4.5 V.
Fast Switching.
100% Avalanche test.
Pb-free lead plating; RoHS compliant VSP006N05MS 50V/70A N-Channel Advanced Power MOSFET V DS 50 V R @DS(on),TYP VGS=10 V 5.5 mΩ R @DS(on),TYP VGS=4.5V 7.5 mΩ I D 70 A PDFN5x6 Part ID VSP006N05MS Package Type PDFN5x6 Marking Tape and reel information 006N05M 3000pcs/reel Maximum ratings, at T j=25 °C, unless otherwise specified Symbol Param.
