VSP009N06MS - N-Channel Advanced Power MOSFET

Name: VSP009N06MS
SKU: VSP009N06MS-1282116

Vanguard Semiconductor

The VSP009N06MS by Vanguard Semiconductor is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VSP009N06MS
Manufacturer	Vanguard Semiconductor
File Size	293.37 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VSP009N06MS-VanguardSemiconductor.pdf

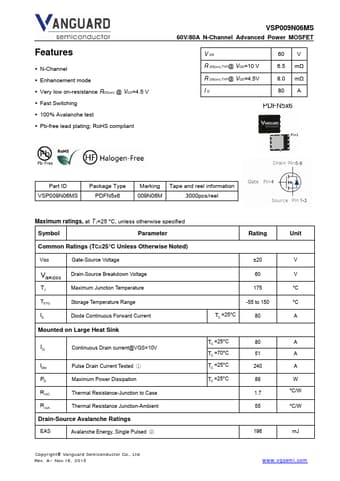

Additional preview pages of the VSP009N06MS datasheet.

N-Channel.
Enhancement mode.
Very low on-resistance RDS(on) @ VGS=4.5 V.
Fast Switching.
100% Avalanche test.
Pb-free lead plating; RoHS compliant VSP009N06MS 60V/80A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5V ID 60 V 6.5 mΩ 8.0 mΩ 80 A PDFN5x6 Part ID VSP009N06MS Package Type PDFN5x6 Marking Tape and reel information 009N06M 3000pcs/reel Maximum ratings, at T j=25 °C, unless otherwise specified Symbol Parameter.
