VSP020P06MS - P-Channel Advanced Power MOSFET

Name: VSP020P06MS
SKU: VSP020P06MS-1300619

Vanguard Semiconductor

The VSP020P06MS by Vanguard Semiconductor is a P-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VSP020P06MS
Manufacturer	Vanguard Semiconductor
File Size	371.41 KB
Description	P-Channel Advanced Power MOSFET
Datasheet	VSP020P06MS-VanguardSemiconductor.pdf

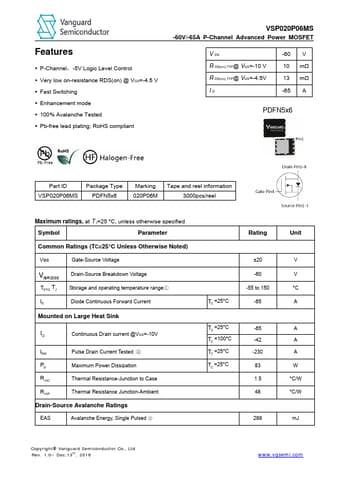

Additional preview pages of the VSP020P06MS datasheet.

P-Channel，-5V Logic Level Control.
Very low on-resistance RDS(on) @ VGS=-4.5 V.
Fast Switching.
Enhancement mode.
100% Avalanche Tested.
Pb-free lead plating; RoHS compliant VSP020P06MS -60V/-65A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS=-4.5V ID -60 V 10 mΩ 13 mΩ -65 A PDFN5x6 Part ID Package Type VSP020P06MS PDFN5x6 Marking Tape and reel information 020P06M 3000pcs/reel Maximum ratings, at T j=25 °C, unless otherwis.
