VSP050N15HS - N-Channel Advanced Power MOSFET

Name: VSP050N15HS
SKU: VSP050N15HS-1282013

Vanguard Semiconductor

The VSP050N15HS by Vanguard Semiconductor is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VSP050N15HS
Manufacturer	Vanguard Semiconductor
File Size	404.51 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VSP050N15HS-VanguardSemiconductor.pdf

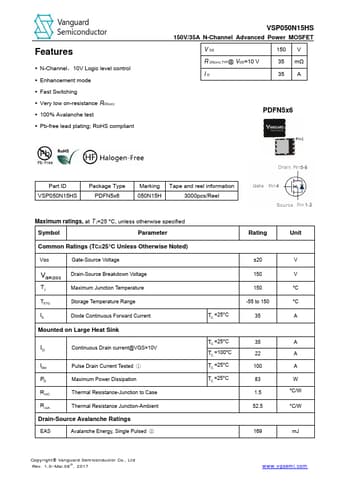

Additional preview pages of the VSP050N15HS datasheet.

N-Channel，10V Logic level control.
Enhancement mode.
Fast Switching.
Very low on-resistance RDS(on).
100% Avalanche test.
Pb-free lead plating; RoHS compliant VSP050N15HS 150V/35A N-Channel Advanced Power MOSFET V DS 150 V R @DS(on),TYP VGS=10 V 35 mΩ I D 35 A PDFN5x6 Part ID VSP050N15HS Package Type PDFN5x6 Marking Tape and reel information 050N15H 3000pcs/Reel Maximum ratings, at T j=25 °C, unless otherwise specified Symbol Parameter Common Rating.
