VST013N10MS - N-Channel Advanced Power MOSFET

Name: VST013N10MS
SKU: VST013N10MS-1281980

Vanguard Semiconductor

The VST013N10MS by Vanguard Semiconductor is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VST013N10MS
Manufacturer	Vanguard Semiconductor
File Size	398.45 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VST013N10MS-VanguardSemiconductor.pdf

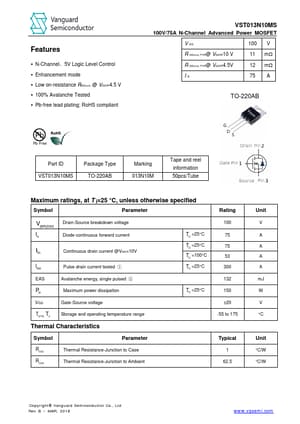

Additional preview pages of the VST013N10MS datasheet.

N-Channel，5V Logic Level Control.
Enhancement mode.
Low on-resistance RDS(on) @ VGS=4.5 V.
100% Avalanche Tested.
Pb-free lead plating; RoHS compliant VST013N10MS 100V/75A N-Channel Advanced Power MOSFET V DS 100 V R @DS(on),TYP VGS=10 V 11 mΩ R @DS(on),TYP VGS=4.5V 12 mΩ I D 75 A TO-220AB Part ID VST013N10MS Package Type TO-220AB Marking 013N10M Tape and reel information 50pcs/Tube Maximum ratings, at T j=25 °C, unless otherwise specified Symbol Paramet.
