VST12N100 Datasheet, Mosfet, VSEEI

VST12N100 Features

  • Mosfet
  • VDS =120V,ID =60A RDS(ON) =10mΩ(typical) @ VGS=10V
  • Excellent gate charge x RDS(on) product(FOM)
  • Very low on-resistance RDS(on)
  • 175 °C operating t

PDF File Details

Part number:

VST12N100

Manufacturer:

VSEEI

File Size:

717.03kb

Download:

📄 Datasheet

Description:

Mosfet. The VST12N100 uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performa

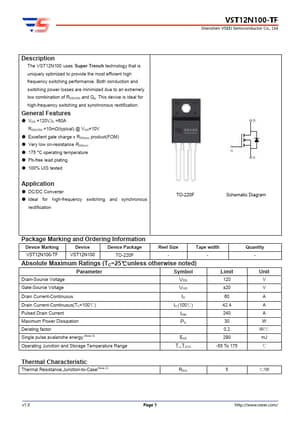

Datasheet Preview: VST12N100 📥 Download PDF (717.03kb)
Page 2 of VST12N100 Page 3 of VST12N100
