VST007P06MS

P-Channel Advanced Power MOSFET

VST007P06MS Features

* P-Channel,-5V Logic Level Control

* Very low on-resistance RDS(on) @ VGS=-4.5 V

* Fast Switching

* Enhancement mode

* 100% Avalanche Tested

* Pb-free lead plating; RoHS compliant VST007P06MS -60V/-80A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),

VST007P06MS Datasheet (295.50 KB)

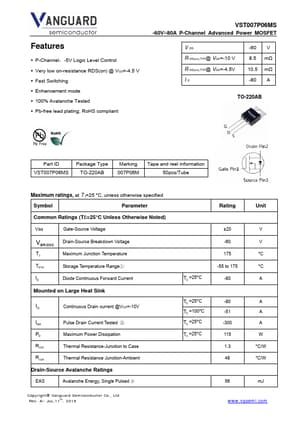

Preview of VST007P06MS PDF

Datasheet Details

Part number:

VST007P06MS

Manufacturer:

Vanguard Semiconductor

File Size:

295.50 KB

Description:

P-channel advanced power mosfet.
