VST006N04MS

N-Channel Advanced Power MOSFET

VST006N04MS Features

* N-Channel,5V Logic Level Control

* Enhancement mode

* Very low on-resistance RDS(on) @ VGS=4.5 V

* Fast Switching

* 100% Avalanche Tested

* Pb-free lead plating; RoHS compliant VST006N04MS 40V/180A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP

VST006N04MS Datasheet (300.01 KB)

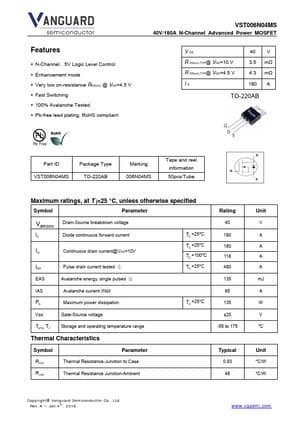

Preview of VST006N04MS PDF

Datasheet Details

Part number:

VST006N04MS

Manufacturer:

Vanguard Semiconductor

File Size:

300.01 KB

Description:

N-channel advanced power mosfet.
