VST007N06HS

N-Channel Advanced Power MOSFET

VST007N06HS Features

* N-Channel，Logic level 10V

* Enhancement mode

* Very low on-resistance

* Fast Switching

* 100% Avalanche test

* Pb-free lead plating; RoHS compliant VST007N06HS 60V/85A N-Channel Advanced Power MOSFET V DS 60 V R @DS(on),TYP VGS=10 V 5.0 mΩ I D 85 A TO-220AB Part ID

VST007N06HS Datasheet (359.59 KB)

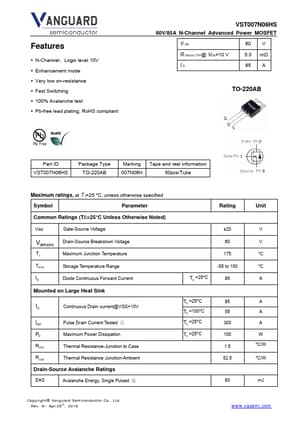

Preview of VST007N06HS PDF

Datasheet Details

Part number:

VST007N06HS

Manufacturer:

Vanguard Semiconductor

File Size:

359.59 KB

Description:

N-channel advanced power mosfet.
