VST003N06MS

N-Channel Advanced Power MOSFET

VST003N06MS Features

* N-Channel,5V Logic Level Control

* Enhancement mode

* Very low on-resistance RDS(on) @ VGS=4.5 V

* Fast Switching

* 100% Avalanche Tested

* Pb-free lead plating; RoHS compliant VST003N06MS 60V/125A N-Channel Advanced Power MOSFET V DS 60 V R @DS(on),TYP VGS=10 V 4.4 mΩ

VST003N06MS Datasheet (345.21 KB)

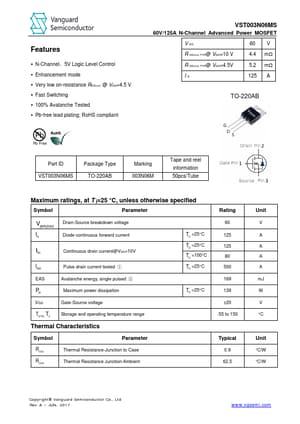

Preview of VST003N06MS PDF

Datasheet Details

Part number:

VST003N06MS

Manufacturer:

Vanguard Semiconductor

File Size:

345.21 KB

Description:

N-channel advanced power mosfet.
