VSTM-12864B, VSTM-12864B-Vs - LCD MODULE

VSTM-12864B Description

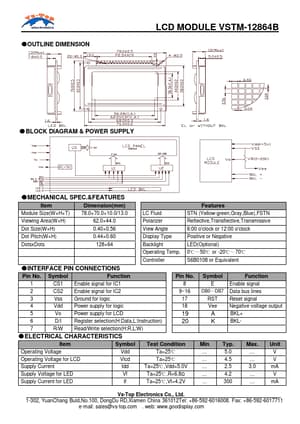

LCD MODULE VSTM-12864B *OUTLINE DIMENSION *BLOCK DIAGRAM & POWER SUPPLY ~ ~ *MECHANICAL SPEC.&.

VSTM-12864B Features

* Item Module Size(W×H×T) Viewing Area(W×H) Dot Size(W×H) Dot Pitch(W×H) DotsxDots Dimension(mm) 78.0×70.0×10.0/13.0 62.0×44.0 0.40×0.56 0.44×0.60 128×64 LC Fluid Polarizer View Angle Display Type Backlight Operating Temp. Controller Features STN (Yellow-green,Gray,Blue),FSTN Reflective,Transflectiv

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VSTM-12864B, VSTM-12864B-Vs. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
VSTM-12864B, VSTM-12864B-Vs
Manufacturer
Vs-Top
File Size
48.65 KB
Datasheet
VSTM-12864B-Vs-Top.pdf
Description
LCD MODULE
Note
This datasheet PDF includes multiple part numbers: VSTM-12864B, VSTM-12864B-Vs.
Please refer to the document for exact specifications by model.
