HCKD5N65BM2 Trench-FS Cool-Watt IGBT

Description

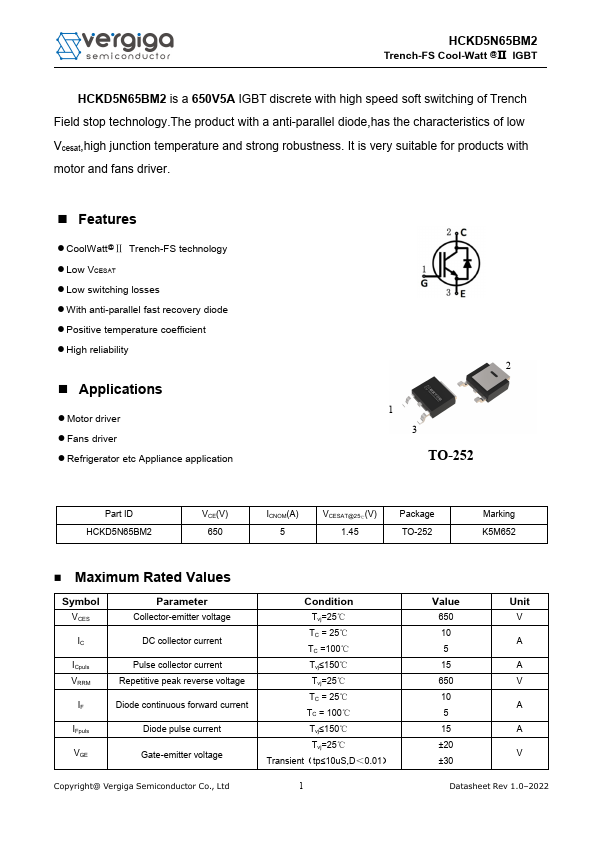

HCKD5N65BM2 Trench-FS Cool-Watt @Ⅱ IGBT HCKD5N65BM2 is a 650V5A IGBT discrete with high speed soft switching of Trench Field stop technology.The produ.

📥 Download Datasheet

HCKD5N65BM2 Datasheet Preview — Preview of HCKD5N65BM2 PDF

Datasheet Specifications

Part number: HCKD5N65BM2
Manufacturer: Vergiga
File Size: 1.35 MB
Datasheet: HCKD5N65BM2-Vergiga.pdf
Description: Trench-FS Cool-Watt IGBT

Features

* CoolWatt@Ⅱ Trench-FS technology
* Low VCESAT
* Low switching losses
* With anti-parallel fast recovery diode
* Positive temperature coefficient
* High reliability

Applications

* Motor driver
* Fans driver
* Refrigerator etc Appliance application 2 1 3 TO-252 Part ID HCKD5N65BM2 VCE(V) 650 ICNOM(A) 5 VCESAT@25℃(V) 1.45 Package TO-252 Marking K5M652
* Maximum Rated Values Symbol VCES Parameter Collector-emitter voltage IC DC collector current IC
