V048K120M025, V048F120M025 Datasheet - Vicor Corporation

V048K120M025 (V048x120x025) Voltage Transformation Module

The V048K120T025 V *I Chip Voltage Transformation Module (VTM) breaks records for speed, density and efficiency to meet the demands of advanced DSP, FPGA, and ASIC at the point of load (POL) while providing isolation from input to output. It achieves a response time of less than 1 µs and deli.
www.DataSheet4U.com PRELIMINARY VTM V I Chip VTM Voltage Transformation Module TM V048K120T025 K indicates BGA configuration. For other mounting options see Part Numbering below. 48 V to 12 V V I Chip Converter 25 A (37.5 A for 1 ms) High density 1200 W/in3 Small footprint 280 W/in2 Low weight 0.5 oz (14 g) Pick & Place / SMD 125°C operation 1 µs transient .

V048K120M025 Features

* Meets or exceeds 2,000 Volts Meets or exceeds 200 Volts Operation limits verified, destruct margin determined Constant line, 0-100% load, -20°C to 125°C V

* I Chip Ball Grid Ar

V048F120M025_VicorCorporation.pdf

This datasheet PDF includes multiple part numbers: V048K120M025, V048F120M025. Please refer to the document for exact specifications by model.

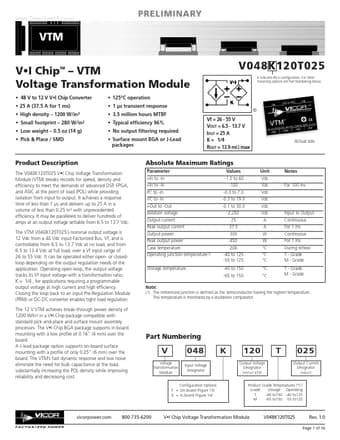

V048K120M025 Datasheet Preview Page 2 V048K120M025 Datasheet Preview Page 3

Datasheet Details

Part number:

V048K120M025, V048F120M025

Manufacturer:

Vicor Corporation

File Size:

502.73 KB

Description:

(v048x120x025) voltage transformation module.

Note:

This datasheet PDF includes multiple part numbers: V048K120M025, V048F120M025.
Please refer to the document for exact specifications by model.
