V048K480T006, V048F480M006 Datasheet - Vicor Corporation

V048K480T006 (V048x480x006) Voltage Transformation Module

The V048K480T006 V *I Chip Voltage Transformation Module (VTM) excels at speed, density and efficiency to meet the demands of advanced power applications while providing isolation from input to output. It achieves a response time of less than 1 µs and delivers up to 6.3 A in a volume of less .
www.DataSheet4U.com PRELIMINARY VTM V I Chip VTM Voltage Transformation Module TM V048K480T006 K indicates BGA configuration. For other mounting options see Part Numbering below. 48 V to 48 V V I Chip Converter 6.3 A (9.4 A for 1 ms) High density 1218 W/in3 Small footprint 280 W/in2 Low weight 0.5 oz (14 g) Pick & Place / SMD 125°C operation 1 µs transient .

V048K480T006 Features

* ts verified, destruct margin determined Constant line, 0-100% load, -20°C to 125°C V

* I Chip Ball Grid Array Interconnect Qualification Test BGA solder fatigue evaluation Solde

V048F480M006_VicorCorporation.pdf

This datasheet PDF includes multiple part numbers: V048K480T006, V048F480M006. Please refer to the document for exact specifications by model.

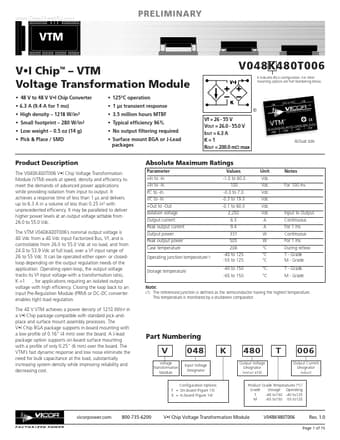

V048K480T006 Datasheet Preview Page 2 V048K480T006 Datasheet Preview Page 3

Datasheet Details

Part number:

V048K480T006, V048F480M006

Manufacturer:

Vicor Corporation

File Size:

506.98 KB

Description:

(v048x480x006) voltage transformation module.

Note:

This datasheet PDF includes multiple part numbers: V048K480T006, V048F480M006.
Please refer to the document for exact specifications by model.
