VKL144

LCD DRIVER

VKL144 Features

* Operating voltage:2.4-5.5V

* Built-in 32kHz RC oscillator

* Selection of 1/2 or 1/3 bias

* 1/4duty(4COM)

* Built-in 36x4 bits display RAM

* Selection of 80Hz、71Hz、64Hz、53Hz Frame Frequency

* STANDBY mode(by System Set Command LCD OFF)

VKL144 General Description

VKL144 36×4 LCD DRIVER VKL144 is a RAM Mapping LCD Driver,It can support LCD screens with a maximum of 144 pattern(36SEGx4COM) .The device communicates with host microcontrollers via a two-line bidirectional I2C bus,it is used to configure display parameters and transfer display data, , and can al.

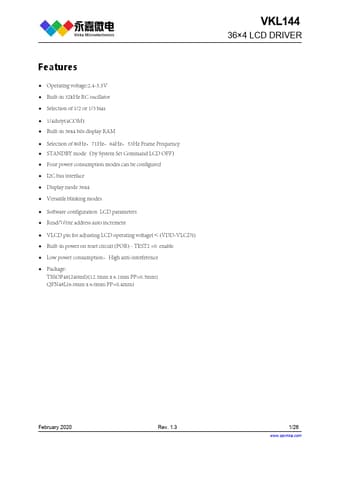

VKL144 Datasheet (3.56 MB)

Preview of VKL144 PDF

Datasheet Details

Part number:

VKL144

Manufacturer:

VinKa

File Size:

3.56 MB

Description:

Lcd driver.
