VKL144D Datasheet - VinKa

LCD Driver

VKL144D General Description

VKL144D 36×4 LCD DRIVER VKL144D is a RAM Mapping LCD Driver，It can support LCD screens with a maximum of 144 pattern(36SEGx4COM) .The device communicates with host microcontrollers via a two-line bidirectional I2C bus,it is used to configure display parameters and transfer display data, , and can .

VKL144D Datasheet (5.54 MB)

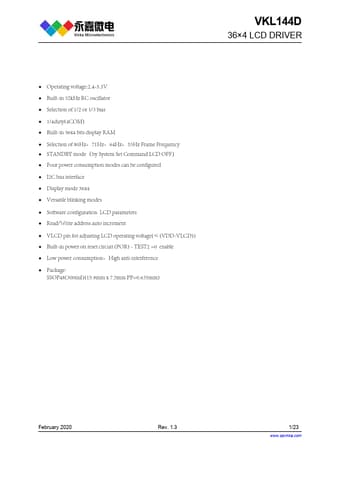

Preview of VKL144D PDF

Datasheet Details

Part number:

VKL144D

Manufacturer:

VinKa

File Size:

5.54 MB

Description:

Lcd driver.
,KGZ[XKY Operating voltage:2.4-5.5V Built-in 32kHz RC oscillator Selection of 1/2 or 1/3 bias 1/4duty(4COM)
