VKL128

32x4 LCD DRIVER

VKL128 Features

* Operating voltage:2.5-5.5V

* Built-in 32kHz RC oscillator

* Selection of 1/2 or 1/3 bias

* 1/4duty(4COM)

* Built-in 32x4 bits display RAM

* 80Hz Frame Frequency

* STANDBY mode(by System Set Command LCD OFF)

* Four power consumption mo

VKL128 General Description

VKL128 32×4 LCD DRIVER VKL128 is a RAM Mapping LCD Driver,It can support LCD screens with a maximum of 128 pattern(32SEGx4COM) .The device communicates with host microcontrollers via a two-line bidirectional I2C bus,it is used to configure display parameters and transfer display data, , and can al.

VKL128 Datasheet (4.12 MB)

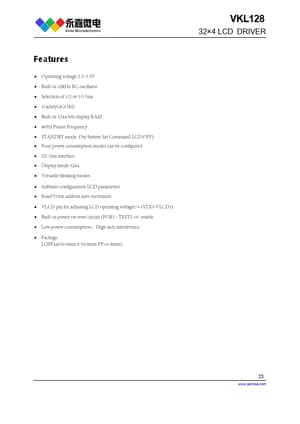

Preview of VKL128 PDF

Datasheet Details

Part number:

VKL128

Manufacturer:

Yongjia

File Size:

4.12 MB

Description:

32x4 lcd driver.
