VLMW712U2U3XV - 1 W Power SMD LED White

Vishay Semiconductors

📥 Download Datasheet

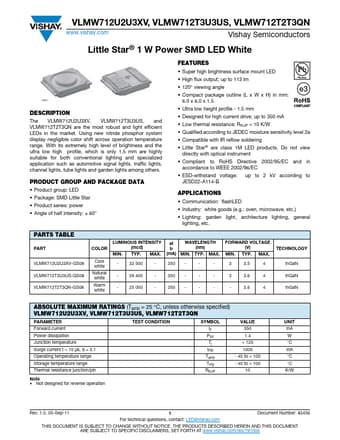

VLMW712U2U3XV Datasheet Preview — Preview of VLMW712U2U3XV PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VLMW712U2U3XV
Manufacturer: Vishay ↗ Semiconductors
File Size: 290.70 KB
Datasheet: VLMW712U2U3XV_VishaySemiconductors.pdf
Description: 1 W Power SMD LED White

VLMW712U2U3XV Product details

Description

The VLMW712U2U3XV, VLMW712T3U3US, and VLMW712T2T3QN are the most robust and light efficient LEDs in the market.

Features

Super high brightness surface mount LED.
High flux output; up to 113 lm.
120° viewing angle 20784-1.
Compact package outline (L x W x H) in mm: 6.0 x 6.0 x 1.5.
Ultra low height profile - 1.5 mm.
Designed for high current drive; up to 350 mA.
Low thermal resistance; RthJP = 10 K/W.
Qualified according to JEDEC moisture sensitivity level 2a.
Compatible with IR reflow soldering.
Little Star® are class 1M LE.
