VLMW1500 - Ultrabright 0402 ChipLED

Vishay Semiconductors

📥 Download Datasheet

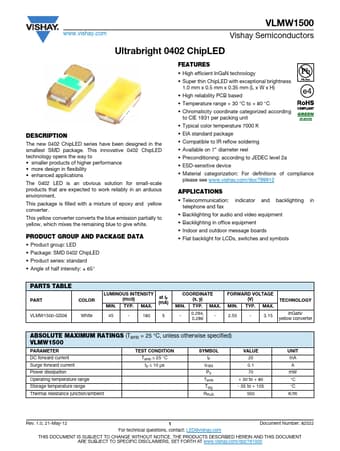

VLMW1500 Datasheet Preview — Preview of VLMW1500 PDF

Datasheet Details

Part number: VLMW1500
Manufacturer: Vishay ↗ Semiconductors
File Size: 245.70 KB
Datasheet: VLMW1500_VishaySemiconductors.pdf
Description: Ultrabright 0402 ChipLED

VLMW1500 Product details

Description

The new 0402 ChipLED series have been designed in the smallest SMD package. smaller products of higher performance more design in flexibility enhanced applications The 0402 LED is an obvious solution for small-scale products that are expected to work reliably in an arduous environment.

Features

High efficient InGaN technology.
Super thin ChipLED with exceptional brightness 1.0 mm x 0.5 mm x 0.35 mm (L x W x H).
High reliability PCB based.
Temperature range + 30 °C to + 80 °C.
Chromaticity coordinate categorized according to CIE 1931 per packing unit.
Typical color temperature 7000 K.
