VLMW1301 - Highbright 0603 ChipLED

Vishay

📥 Download Datasheet

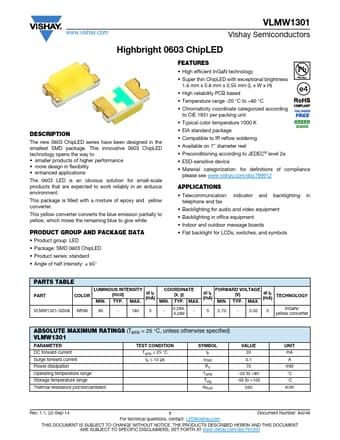

VLMW1301 Datasheet Preview — Preview of VLMW1301 PDF

Datasheet Details

Part number: VLMW1301
Manufacturer: Vishay ↗
File Size: 225.54 KB
Datasheet: VLMW1301-Vishay.pdf
Description: Highbright 0603 ChipLED

VLMW1301 Product details

Description

The new 0603 ChipLED series have been designed in the smallest SMD package. smaller products of higher performance more design in flexibility enhanced applications The 0603 LED is an obvious solution for small-scale products that are expected to work reliably in an arduous environment.This package is filled with a mixture of epoxy and yellow converter.This yellow converter converts the blue emission partiall

Features

High efficient InGaN technology.
Super thin ChipLED with exceptional brightness 1.6 mm x 0.8 mm x 0.55 mm (L x W x H).
High reliability PCB based.
Temperature range -20 °C to +80 °C.
Chromaticity.
