VLMW1300-GS08, VLMW1300, Highbright 0603 ChipLED

www.DataSheet.co.kr VLMW1300 www.vishay.com Vishay Semiconductors Highbright 0603 ChipLED .
The new 0603 ChipLED series have been designed in the smallest SMD package. smaller.

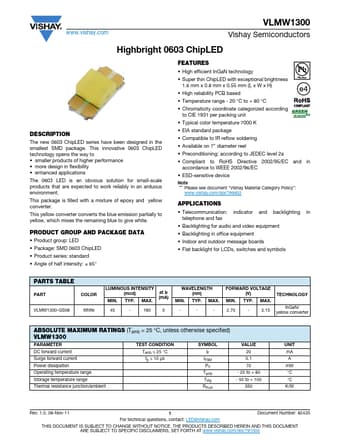

datasheet Preview Page 1 from Datasheet4u.com

VLMW1300_VishaySemiconductors.pdf

VLMW1300-GS08 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLMW1300-GS08, VLMW1300. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLMW1300-GS08, VLMW1300

Manufacturer:

Vishay ↗ Semiconductors

File Size:

234.27 KB

Description:

Highbright 0603 ChipLED

Note:

This datasheet PDF includes multiple part numbers: VLMW1300-GS08, VLMW1300.
Please refer to the document for exact specifications by model.

Features

* High efficient InGaN technology
* Super thin ChipLED with exceptional brightness 1.6 mm x 0.8 mm x 0.55 mm (L x W x H)
* High reliability PCB based
* Temperature range - 20 °C to + 80 °C
* Chromaticity coordinate categorized according to CIE 1931 per packing

Applications

* The 0603 LED is an obvious solution for small-scale products that are expected to work reliably in an arduous environment. This package is filled with a mixture of epoxy and yellow converter. This yellow converter converts the blue emission partially to yellow, which mixes the remaining blue to give
