VLMW1301-GS08 Highbright 0603 ChipLED

The new 0603 ChipLED series have been designed in the smallest SMD package. This innovative 0603 ChipLED technology opens the way to * smaller products of higher performance * more design in flexibility * enhanced applications The 0603 LED is an obvious solution for small-sca.

VLMW1301-GS08 Features

* High efficient InGaN technology

* Super thin ChipLED with exceptional brightness 1.6 mm x 0.8 mm x 0.55 mm (L x W x H)

* High reliability PCB based

* Temperature range -20 °C to +80 °C

* Chromaticity

VLMW1301-Vishay.pdf

This datasheet PDF includes multiple part numbers: VLMW1301-GS08, VLMW1301. Please refer to the document for exact specifications by model.

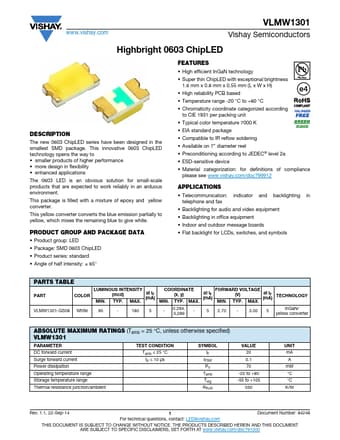

VLMW1301-GS08 Datasheet Preview Page 2 VLMW1301-GS08 Datasheet Preview Page 3

Datasheet Details

Part number:

VLMW1301-GS08, VLMW1301

Manufacturer:

Vishay ↗

File Size:

225.54 KB

Description:

Highbright 0603 chipled.

Note:

This datasheet PDF includes multiple part numbers: VLMW1301-GS08, VLMW1301.
Please refer to the document for exact specifications by model.
