ACAS0606AT - Precision Thin Film Chip Resistor Array

Vishay Siliconix

📥 Download Datasheet

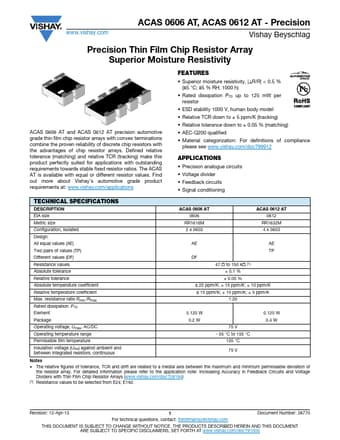

ACAS0606AT Datasheet Preview — Preview of ACAS0606AT PDF

Datasheet Details

Part number: ACAS0606AT
Manufacturer: Vishay ↗ Siliconix
File Size: 156.80 KB
Datasheet: ACAS0606AT_VishaySiliconix.pdf
Description: Precision Thin Film Chip Resistor Array

ACAS0606AT Product details

Description

ACAS 0606 AT ACAS 0612 AT EIA size 0606 0612 Metric size RR1616M RR1632M Configuration, isolated 2 x 0603 4 x 0603 Design: All equal values (AE) AE AE Two pairs of values (TP) TP Different values (DF) Resistance values DF 47  to 150 k (1) Absolute tolerance ± 0.1 % Relative tolerance ± 0.05 % Absolute temperature coefficient Relative temperature coefficient 25 ppm/K; ± 15 ppm/K; ± 10 ppm/K 15 ppm/K; ± 10 ppm/K; ± 5 ppm/K Max.resistance ratio Rmin./Rmax.Rated dis

Features

Superior moisture resistivity, |R/R| < 0.5 % (85 °C; 85 % RH; 1000 h).
Rated dissipation P70 up to 125 mW per resistor.
ESD stability 1000 V, human body model.
Relative TCR down to ± 5 ppm/K (tracking).
Relative tolerance down to ± 0.05 % (matching).
AEC-Q200 qualified.
Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.
