ACAS0612, ACAC0612 Datasheet - Vishay Siliconix

ACAS0612 - Professional Thin Film Chip Resistor Array

EIA size Metric size Configuration, isolated Design: All equal Two pairs Resistance values Absolute tolerance Relative tolerance Absolute temperature coefficient Relative temperature coefficient Max. resistance ratio Rmin./Rmax. Rated dissipation: P70 Element Package, 4 x 0603 Operating voltage Oper.
www.vishay.com ACAS 0612 - Precision Vishay Beyschlag Precision Thin Film Chip Resistor Array The ACAS 0612 thin film chip resistor arrays combine the proven reliability of precision thin film chip resistor products with the advantages of chip resistor arrays. Defined relative tolerance (matching) and relative TCR (tracking) make this product perfectly suited for applications with outstanding requirements towards stable fixed resistor ratios. A small package enables the design of high density.

ACAS0612 Features

* Advanced thin film technology

* Two pairs or four equal resistor values

* Relative TCR down to ± 5 ppm/K (tracking)

* Relative tolerance down to ± 0.05 % (matching)

* Pure Sn termination on Ni barrier layer

* Material categorization: For definitions

ACAC0612_VishaySiliconix.pdf

This datasheet PDF includes multiple part numbers: ACAS0612, ACAC0612. Please refer to the document for exact specifications by model.

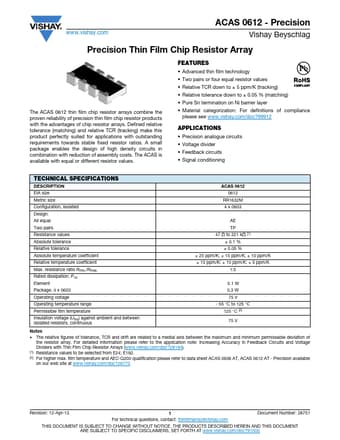

ACAS0612 Datasheet Preview Page 2 ACAS0612 Datasheet Preview Page 3

Datasheet Details

Part number:

ACAS0612, ACAC0612

Manufacturer:

Vishay ↗ Siliconix

File Size:

143.53 KB

Description:

Professional thin film chip resistor array.

Note:

This datasheet PDF includes multiple part numbers: ACAS0612, ACAC0612.
Please refer to the document for exact specifications by model.
