APD-128G032 Datasheet - Vishay Siliconix

APD-128G032 Plasma Display Modules 128 x 32 Graphics Display

Logic Supply Anode Supply Cathode Supply Cathode Control * * Total Vsp and Vsn Logic 1 Input Logic 0 Input SYMBOL Vcc Vsp Vsn Vrw Vtot Vih Vil MIN. + 4.5 * * 170 2.0 * TYP. + 5.0 + 75 - 110 185 * * MAX. + 5.5 + 80.0 - 125 + 15.0 205 * 0.8 UNITS V.

APD-128G032 Features

* TTL level video interface.

* Large characters.

* Highly visible for long distance viewing.

* > 30:1 contrast ratio.

* Bright and pleasant neon orange color.

* Slim profile.

* Very affordable. The APD-128G032 DC plasma display offers viewing q

APD-128G032_VishaySiliconix.pdf

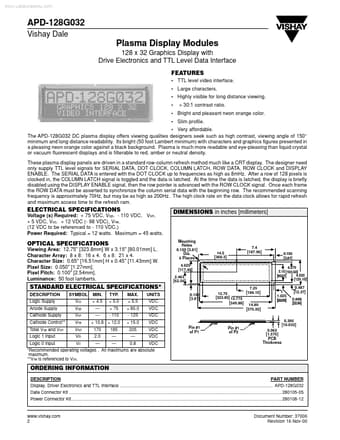

Preview of APD-128G032 PDF

Datasheet Details

Part number:

APD-128G032

Manufacturer:

Vishay ↗ Siliconix

File Size:

74.14 KB

Description:

Plasma display modules 128 x 32 graphics display.
