APD-128G064 Datasheet - Vishay

APD-128G064 - Plasma Display

SYMBOL MIN.

Logic Supply Vcc + 4.5 Anode Supply Vsp - Cathode Supply Vsn - Cathode Control * * Vrw + 10.8 Total + Vsp & - Vsn Vtot 170 Logic 1 Input Vih 2.0 Logic 0 Input Vil - TYP.

+ 5.0 + 75 - 110 + 12.0 185 - MAX.

+ 5.5 + 80 - 125 + 15.0 205 0.8 UNITS VDC VDC VDC V

APD-128G064 Features

* TTL level video interface

* Slim profile

* Bright and vivid graphics

* Low DC power consumption

* > 50,000 hour MTBF

* 30:1 contrast ratio

* Very affordable The APD-128G064 DC plasma display offers viewing qualities designers seek such as hi

APD-128G064-Vishay.pdf

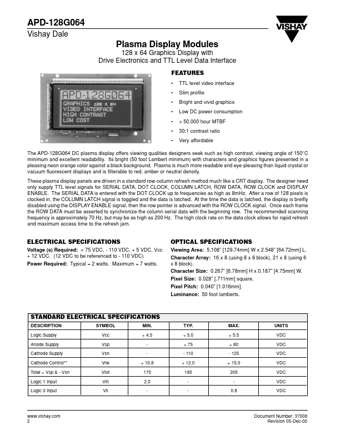

Preview of APD-128G064 PDF
APD-128G064 Datasheet Preview Page 2 APD-128G064 Datasheet Preview Page 3

Datasheet Details

Part number:

APD-128G064

Manufacturer:

Vishay ↗

File Size:

59.27 KB

Description:

Plasma display.
