APD-192G064

Plasma Panel Display Modules 192 x 64 Graphics Display

APD-192G064 Features

* TTL level video interface

* Large, bright characters and graphics

* > 30:1 contrast ratio

* Slim profile

* Highly visible for long distance viewing The APD-192G064 DC Plasma display offers viewing qualities designers seek such as high contrast, viewing angle

APD-192G064 General Description

SYMBOL MIN. TYP. MAX. UNITS 0.156 [3.96] 15.330 [389.38] 8.527 [216.59] 3.217 [81.71] 17.367 ± 0.010 [441.12 ± 0.254] 0.447 ± 0.025 [11.35 ± 0.635] .. 0.403 [10.24] + 5.5 Vcc VDC + 4.5 + 5.0 Logic supply Vsp VDC

* + 75.0 + 80.0 Anode supply Vsn VDC

* - 110.0 - 125.0 Cathode sup.

APD-192G064 Datasheet (73.98 KB)

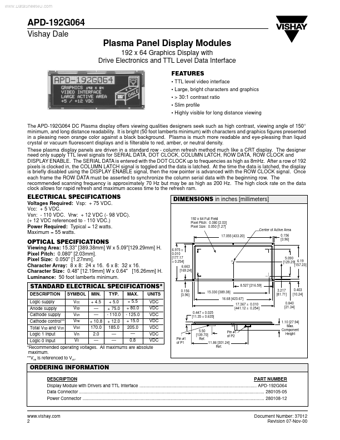

Preview of APD-192G064 PDF

Datasheet Details

Part number:

APD-192G064

Manufacturer:

Vishay ↗ Siliconix

File Size:

73.98 KB

Description:

Plasma panel display modules 192 x 64 graphics display.
www.DataSheet4U.com APD-192G064 Vishay Dale Plasma Panel Display Modules 192 x 64 Graphics Display with Drive Electronics and TTL Level Data Interfa.
