CR180

Current Regulator Diodes

CR180 Features

* D D D D BENEFITS APPLICATIONS D Constant-Current Supply D Current-Limiting D Timing Circuits Two-Lead Hermetic Package D Simple Series Circuitry, No Separate Voltage Source Guaranteed Tight "10% Tolerance Operation from 1 V (CR160) to 100 V D Tighter Guaranteed Circuit Performance D Excellent Per

CR180 General Description

The CR160 series is a family of "10% range current regulators designed for demanding applications in test equipment and instrumentation. These devices combine a JFET with an integrated resistor to produce a single two-leaded device which is extremely simple to operate. With nominal current ranges fr.

CR180 Datasheet (57.84 KB)

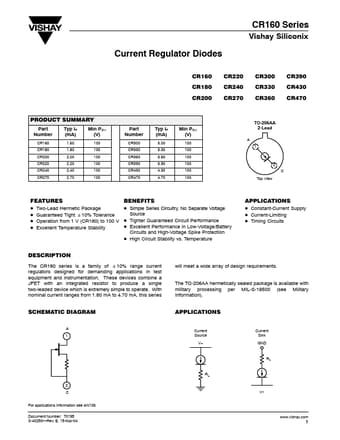

Preview of CR180 PDF

Datasheet Details

Part number:

CR180

Manufacturer:

Vishay ↗ Siliconix

File Size:

57.84 KB

Description:

Current regulator diodes.
CR160 Series Vishay Siliconix Current Regulator Diodes CR160 CR180 CR200 CR220 CR240 CR270 CR300 CR330 CR360 CR390 CR430 CR470 PRODUCT SUMMARY Part .
