CR18N50FA9K

Silicon N-Channel Power MOSFET

CR18N50FA9K Features

* Fast Switching

* Low ON Resistance

* Low Gate Charge

* Low Reverse transfer capacitances

* 100% Single Pulse avalanche energy Test VDSS ID PD(TC=25℃) RDS(ON)Typ 500 V 18 A 43 W 0.33 Ω Applications： Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless

CR18N50FA9K General Description

CR18N50F A9K, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and hi.

CR18N50FA9K Datasheet (1.03 MB)

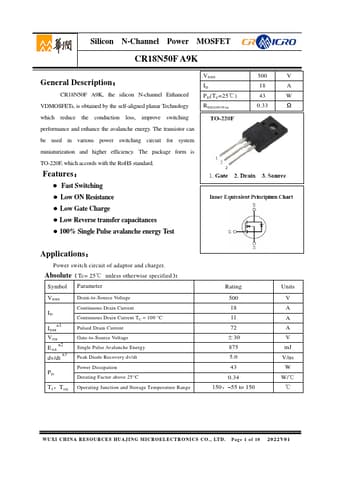

Preview of CR18N50FA9K PDF

Datasheet Details

Part number:

CR18N50FA9K

Manufacturer:

CR Micro

File Size:

1.03 MB

Description:

Silicon n-channel power mosfet.
