DFA06S - Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier

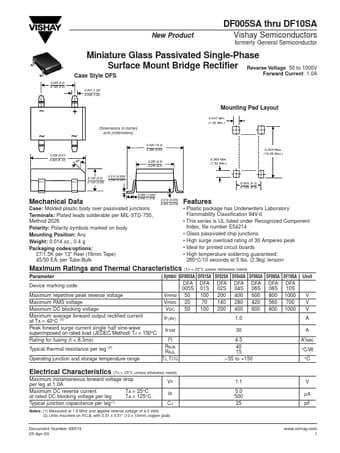

DF005SA thru DF10SA New Product Vishay Semiconductors formerly General Semiconductor Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifier Reverse Voltage Case Style DFS 0.205 (5.2) 0.195 (5.0) 0.047 (1.20) 0.040 (1.02) 50 to 1000V Forward Current 1.0A Mounting Pad Layout 0.047 Min.

(1.20 Min.) Dimensions in inches and (millimeters) 0.404 (10.3) 0.386 (9.80) 0.335 (8.51) 0.320 (8.13) 0.404 Max.

(10.26 Max.) 0.060 Min.

(1.52 Min.) 45o 0.255 (6.5) 0.245 (6.2) 0.130 (3.3)

DFA06S Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0

* This series is UL listed under Recognized Component Index, file number E54214

* Glass passivated chip junctions

* High surge overload rating of 30 Amperes peak

* Ideal for printe
