DG2721 Dual SPDT Analog Switch

DG2721 Description

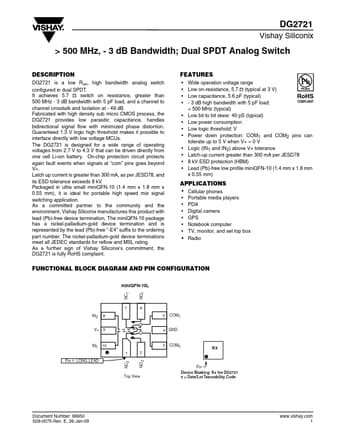

www.DataSheet.co.kr DG2721 Vishay Siliconix > 500 MHz, - 3 dB Bandwidth; Dual SPDT Analog Switch .
DG2721 is a low Ron, high bandwidth analog switch configured in dual SPDT.

DG2721 Features

* Wide operation voltage range Low on-resistance, 5.7 Ω (typical at 3 V) Low capacitance, 5.6 pF (typical) RoHS COMPLIANT - 3 dB high bandwidth with 5 pF load: > 500 MHz (typical) Lo

DG2721 Applications

* Cellular phones
* Portable media players PDA Digital camera GPS Notebook computer TV, monitor, and set top box
* Radio FUNCTIONAL BLOCK DIAGRAM AND PIN CONFIGURATION miniQFN-10L NO1 NC1 7 IN2 V+ 8 6 5 COM1 9 4 GND I N1
