DG418L

Precision Monolithic Low-Voltage CMOS Analog Switches

DG418L Features

* 2.7 V- thru 12 V single supply or ± 3- thru ± 6 dual supply

* On-resistance - RON: 14 

* Fast switching - tON: 28 ns - tOFF: 13 ns

* TTL, CMOS compatible Available Available

* Low leakage: < 100 pA

* Material categorization: For definitions of

DG418L General Description

The DG417L, DG418L, DG419L are low voltage pin-for-pin compatible companion devices to the industry standard DG417, DG418, DG419 with improved performance. Using BiCMOS wafer fabrication technology allows the DG417L, DG418L, DG419L to operate on single and dual supplies. Single supply voltage ranges.

DG418L Datasheet (258.92 KB)

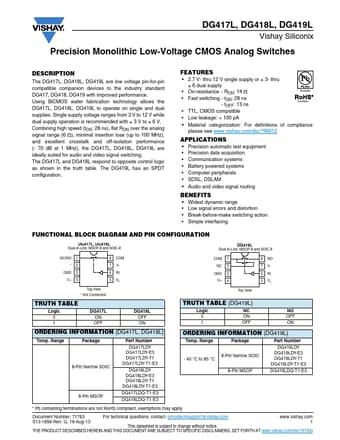

Preview of DG418L PDF

Datasheet Details

Part number:

DG418L

Manufacturer:

Vishay ↗ Siliconix

File Size:

258.92 KB

Description:

Precision monolithic low-voltage cmos analog switches.
