DG419L Precision Monolithic Low-Voltage CMOS Analog Switches

The DG417L, DG418L, DG419L are low voltage pin-for-pin compatible companion devices to the industry standard DG417, DG418, DG419 with improved performance. Using BiCMOS wafer fabrication technology allows the DG417L, DG418L, DG419L to operate on single and dual supplies. Single supply voltage ranges.

DG419L Features

* 2.7 V- thru 12 V single supply or ± 3- thru ± 6 dual supply

* On-resistance - RON: 14 

* Fast switching - tON: 28 ns - tOFF: 13 ns

* TTL, CMOS compatible Available Available

* Low leakage: < 100 pA

* Material categorization: For definitions of

DG417L_VishaySiliconix.pdf

This datasheet PDF includes multiple part numbers: DG419L, DG417L. Please refer to the document for exact specifications by model.

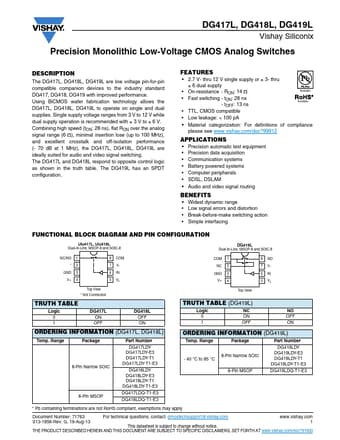

DG419L Datasheet Preview Page 2 DG419L Datasheet Preview Page 3

Datasheet Details

Part number:

DG419L, DG417L

Manufacturer:

Vishay ↗ Siliconix

File Size:

258.92 KB

Description:

Precision monolithic low-voltage cmos analog switches.

Note:

This datasheet PDF includes multiple part numbers: DG419L, DG417L.
Please refer to the document for exact specifications by model.
