DG419B, DG417B Datasheet - Vishay

DG419B, DG417B, Precision CMOS Analog Switches

DG417B, DG418B, DG419B Vishay Siliconix Precision Monolithic Quad SPST CMOS Analog Switches .
The DG417B, DG418B, DG419B monolithic CMOS analog switches were designed to provide high performance switching of analog signals.

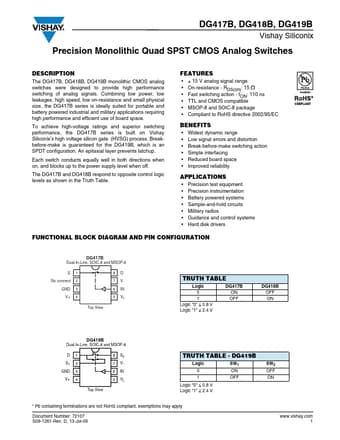

datasheet Preview Page 1 from Datasheet4u.com

DG417B_VishaySiliconix.pdf

DG419B Datasheet Preview — This datasheet PDF includes multiple part numbers: DG419B, DG417B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DG419B, DG417B

Manufacturer:

Vishay ↗

File Size:

267.89 KB

Description:

Precision CMOS Analog Switches

Note:

This datasheet PDF includes multiple part numbers: DG419B, DG417B.
Please refer to the document for exact specifications by model.

Features

* ± 15 V analog signal range
* On-resistance - RDS(on): 15 Ω
* Fast switching action - tON: 110 ns
* TTL and CMOS compatible
* MSOP-8 and SOIC-8 package
* Compliant to RoHS directive 2002/95/EC BENEFITS
* Widest dynamic range
* Low sign

Applications

* requiring high performance and efficient use of board space. To achieve high-voltage ratings and superior switching performance, the DG417B series is built on Vishay Siliconix’s high voltage silicon gate (HVSG) process. Breakbefore-make is guaranteed for the DG419B, which is an SPDT configuration. A
